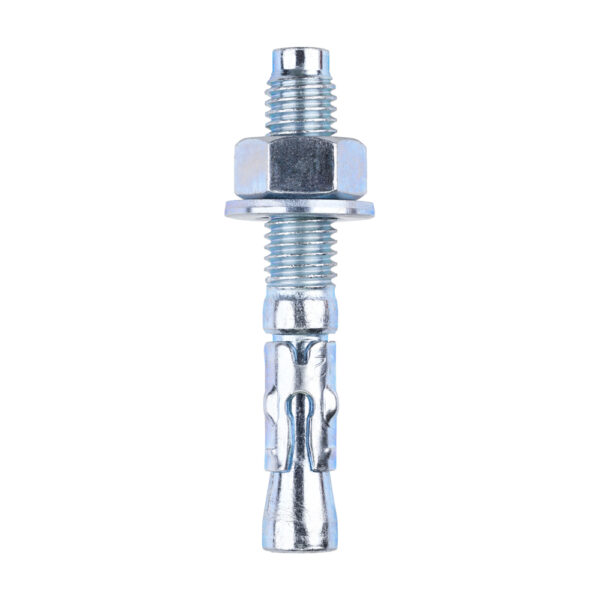

Throughbolt – BZP-M12 x 80
£31.58
Throughbolts – Zinc
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
| Thread Dia. mm | M12 |
|---|---|
| Length mm | 80 |
| Nut Socket Size mm | 19 |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Dia. mm | 12 |
| Fixture Hole Diameter mm | 14 |
| Edge Distance mm | 75 |
| Max Fixture Thickness mm | 5 |
| Min Drill Hole Depth mm | 60 |
| Brand | TIMCO |
| Group | ANR |
| Type | THB |
| Sub Type | THB01 |
