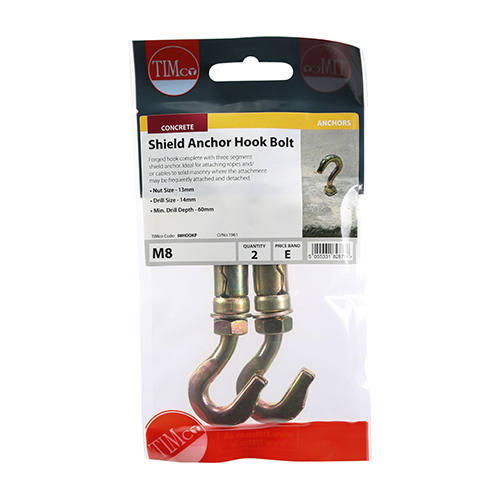

Shield Anchor Hook – ZYP-M8
£3.44
Forged Hooks with Shield Anchors – Yellow
A useful threaded hook bolt for attaching ropes or cables, complete with three segment shield anchor. Manufactured using a forging process for extra strength preventing the hook from opening out when the load is applied.
| Thread Dia. mm | M8 |
|---|---|
| Shield Length mm | 50 |
| Material | Carbon Steel |
| Finish | Zinc & Yellow |
| Drill Hole Dia. mm | 14 |
| Fixture Hole Diameter mm | N/A |
| Min Drill Hole Depth mm | 60 |
| Min Embedment Depth mm | 50 |
| Min Structure Thickness mm | 100 |
| Brand | TIMCO |
| Group | NUT |
| Type | PAK |
| Sub Type | PAK47 |
